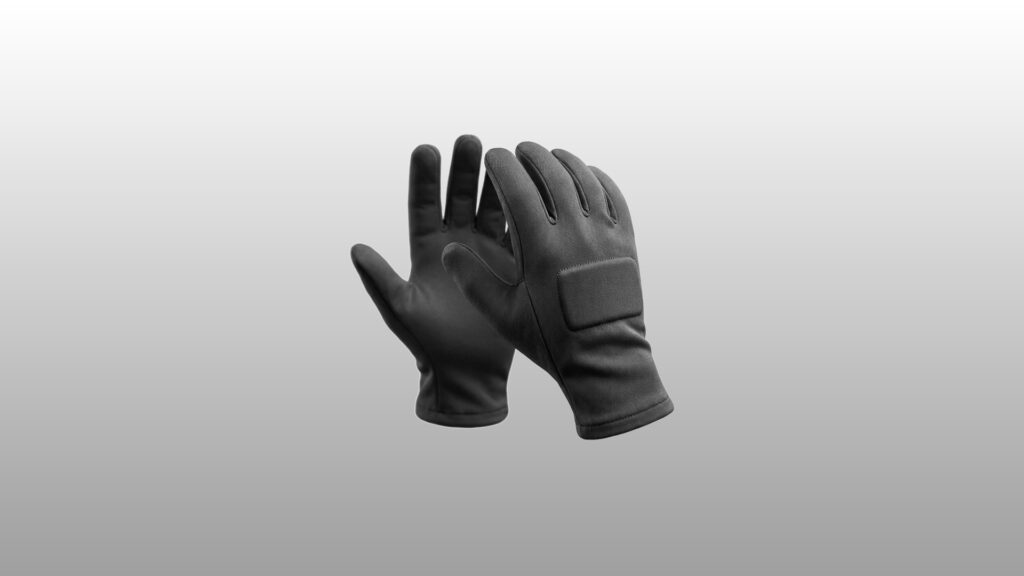

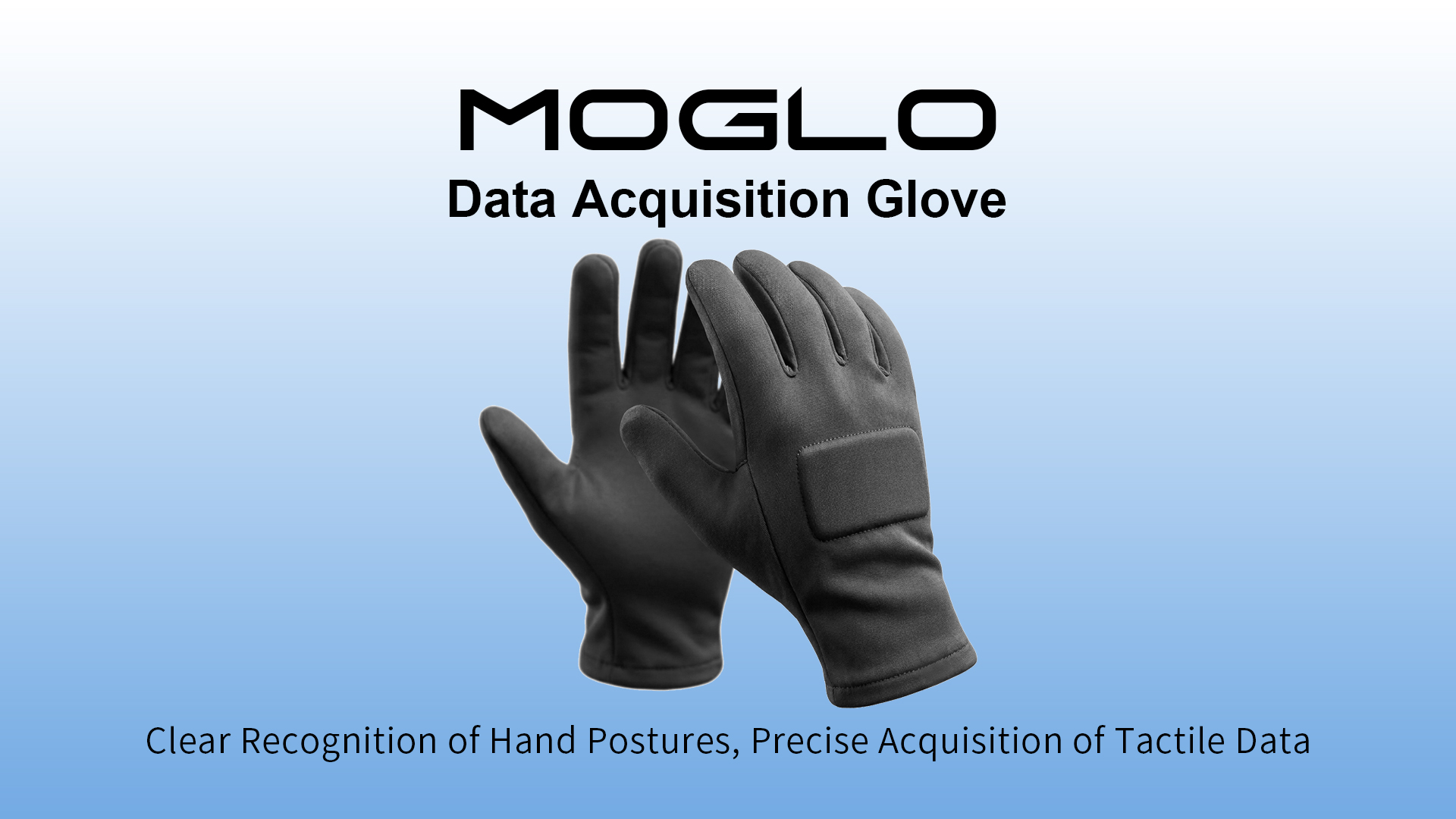

Product Specifications
| Specifications | Data Acquisition Glove |
|---|---|
| Structure | 176.8 × 272.0 mm (customizable) |
| Array Number | 12×8 (customizable) |
| Range | 200 kPa (customizable) |
| Minimum Sensing Force | ≤0.1 N |
| Operating Life | 1 Million Cycles |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 5~95%RH, Non-Condensing |
| Sensing Area | 172.8 × 172.0 (customizable) |
| Force Accuracy | 10–20%FS |
| Linearity | ≥95% |
| Sensing Pitch | Min. 6 mm |
| Communication Frequency | 100 Hz |
| Communication Protocol | UART/IIC/485 |
